Security Cameras & Video Intelligence Systems
Spade Security delivers fully integrated video intelligence ecosystems — combining AI analytics, cloud management, perimeter detection, and enterprise-grade hardware into one cohesive security infrastructure.
From single facilities to national multi-site operations, we design camera systems that detect, verify, alert, and support real-time response.
Advanced Surveillance Technologies Built for Modern Threats
We design and deploy scalable camera ecosystems across six core solution categories
Interior Active Deterrence Unit
Integrated 5-watt red/blue LED strobe strip provides a clear visual warning to deter unwanted activity.
10-watt amplified speakers with two-way audio enable real-time voice-down communication and response.
Seamless compatibility with 180°, 360°, and standard dome cameras to support a wide range of surveillance needs.
Low-profile form factor designed for discreet and effective indoor deterrence.
Flexible power and integration options for easy deployment in a variety of indoor environments.
Hanwha Dome Camera - Outdoor, 5MP (QNV-8080R)
5 MP Network IR Vandal Resistant Dome Camera with Varifocal Lens
- 5 Megapixel resolution
- 3.2~10mm (3.1x) motorized varifocal lens
- 30fps@all resolutions (H.265/H.264)
- H.265, H.264, MJPEG codec supported, Multiple streaming
- Day & Night (ICR), WDR (120dB)
- Defocus detection, Directional detection, Motion detection, Enter/Exit, Tampering, Virtual line
- micro SD (128GB) memory slot, PoE
- IR viewable length 30m, IP66, IK10
- Hallway view support
- Analog video out & simple focus for easy installation
- LDC support (Lens Distortion Correction)
Alibi Vigilant Flex Series 5MP Starlight 98ft 4-in-1 Vandal-Resistant Fixed Dome Security Camera
- 5MP Resolution Dome Camera
- .005 Lux Rating
- TVI/AHD/CVI/CVBS
- Built-in Microphone for high quality audio over coax
- 1/2.7” CMOS Sensor
- 2.8mm lens
- Smart IR, up to 98 ft
- DWDR (Digital Wide Dynamic Range)
- IP67 rating – withstands temps from -22 degrees to 140 degrees Fahrenheit
- IK10 rating – Vandal-Resistant
- NDAA Compliant
VKX - US
Loaded with user-centric enhancements, the VKX sets a new standard in autonomous cellular security. Experience instant video access with On-demand Mode, providing immediate footage at your fingertips. The VKX boasts an 2X larger solar panel for up to 6 months autonomy. Install and relocate the camera with even more ease thanks to the new Front-access Design ensuring swift maintenance and rapid deployment. Take Surveillance Further with the VOSKER® VKX.
Cellular: LTE-M connectivity.
GPS: GPS-enabled.
Photo: 10 MP resolution with a 90° field of view.
Video: Full HD (1080p) at 30fps.
Detection System: 100 ft detection distance.
Primary Power: 14,000 mAh high-capacity rechargeable lithium battery.
Solar Panel: Integrated solar panel for power autonomy.
Included Storage: 32 GB MicroSD card.
SIM Card: Pre-installed VOSKER® SIM card.
Mounting: Includes a 360-degree swivel and tilt mounting arm, flat mounting plate, and wood screw option.
Durability: Weather-resistant design.
Charging: Includes a 3 ft (1 m) USB-A to USB-C charging cable.
Extras: Includes two “Protected by VOSKER®” stickers.
RECONEYEZ SECURITY CAMERA
Detection Range: 115 ft (35m)
Visual Verification: AI-driven
Alarm Images: HD-quality
Analytics: Number plate detection
Sensor Type: PIR detector
Connectivity: Long-range wireless
System Devices: Detector, Bridge, Siren, Accessories, Bridge (4G), Gantry

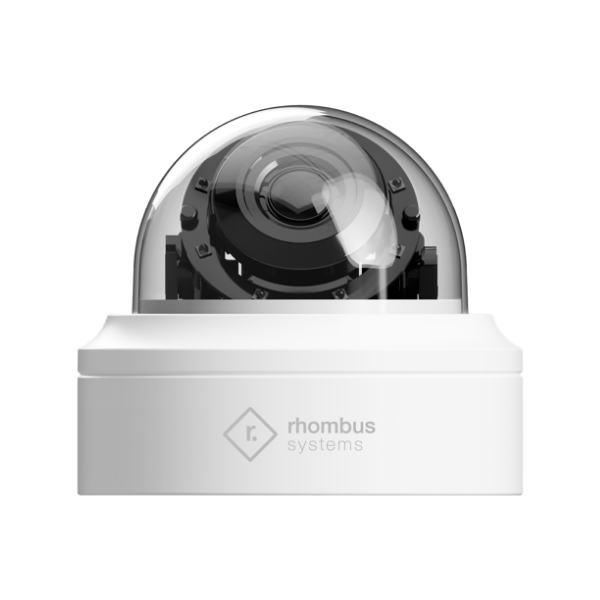

RHOMBUS R120 DOME CAMERA
Technical Specifications
Resolution: 2MP sensor with 1920 x 1080 resolution.
Aperture: F/2.0.
Pan / Tilt / Zoom: Supports up to 2X digital PTZ.
Field of View: 111° Diagonal, 104° Horizontal, and 71° Vertical FoV.
Focal Length: 2.8mm.
Dimensions: 118mm (4.64in) x 90mm (3.54in).
Weight: 0.64kg (1.42lbs).
Weather Resistance: IP66 rated.
Impact Resistance: IK10 rated.
Night Vision: Infrared illuminators providing 100ft visibility in low light.
Onboard Storage: 128GB included, sufficient for approximately 20 days.
Ethernet: 10 / 100Mbps with MDI / MDI-X Auto Sensing.
Power-Over-Ethernet: Standard 802.3af for simple one-cable installation.
Power Consumption: Maximum of 10.5 watts.
Operating Temperature: -20˚ to 50˚ C (-4˚ to 122˚ F).
Operating Humidity: Less than 95% RH.
In the Box: Includes Torx key, mounting screws, and anchors.
Baseline Steady State: 10 – 30 Kbps per camera.
HD WAN Live Streaming: 530 – 720 Kbps per camera.
Compliance: CE/LVD, FCC, IC, UK, UL 62368-1, AUS, NZ, NDAA, and TAA Compliant.
Network Compatibility: Compatible with the Rhombus Sensor Network.
Warranty: 10-Year Warranty included.
Uniview (UNV) IPC3612LB-AF28K-DL
Manufacturer: Zhejiang Uniview Technologies Co., Ltd.
Category: CCTV > IP cameras.
Model Code: IPC3612LB-AF28K-DL.
Series: UNV Easy Series.
Colour Type: Colour / Monochrome.
Resolution: 2 MP resolution.
Sensitivity: Color: 0.005 Lux (F1.6, AGC ON), 0 Lux with light.
Focal Length: 2.8 mm.
Voltage: 12 V DC, PoE.
Power Consumption: Max. 4.5 W.
Image Frame Rate: 30 fps.
Interface: RJ45 10 M/100 M Base-TX Ethernet.
Network Protocols: IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, QoS, SSL/TLS, SNMP.
Back Light Compensation: Yes.
Auto Gain Control: Yes.
White Balance: Yes.
Electronic Shutter Range: 1 ~ 1/100000s.
S/N Ratio: >52 dB.
Compression Type: Ultra 265, H.265, H.264.
Dimensions: Ø118 x 98 mm.
Weight: 240 g.
Protection Rating: IP67.
Operating Temperature: -30°C ~ +60°C (-22°F ~ +140°F).
Operating Humidity: ≤ 95% RH.
REDSCAN mini-Pro RLS-2020V
Technical Specifications
Installation Location: Indoor/Outdoor.
Detection Method: Infrared Laser Scan.
Laser Protection Class: Class 1.
Detection Area: $20 \times 20$ m, 95 degree (approx. $65 \times 65$ ft.).
Detection Range: Radius 1 to 21m (approx. 3.3 to 68ft) at 10% reflectivity.
Detection Resolution / Response Time: 0.125 degrees / within 100 msec. to 15 min. or 0.25 degrees / within 50 msec. to 15 min.
Mounting Height (Vertical Mode): Indoor: 2 m (6.7 ft.) or higher; Outdoor: 4 m (13 ft.) or higher (Recommended).
Communication Port: Ethernet RJ-45 10BASE-T/100BASE-TX (Auto negotiation).
Protocol: UDP, TCP, HTTP, HTTPS, IPV4, IPV6, DNS, DHCP, SNMPv1-v3, NTP, WS-Discovery, ONVIF, and IEEE802.1X.
Output: 6 programmable outputs, 28 VDC 0.2 A max. N.O./N.C. (selectable) including Master alarm, Zone alarm, Trouble, Tamper, Environmental Disqualification, and Device Monitoring.
Input: 2 Programmable Non-voltage contact inputs for profile switching, area set, sensor check, and dynamic event filtering.
Alarm Period: Approximately 2 second delay timer.
Operating Temperature: -40°C to 60°C (-40°F to 140°F).
Dimensions: 202.6 x 206.7 x 163.5 mm max. (8.0 x 8.1 x 6.4 inch).
Image Sensor: Full HD (1980 x 1080).
Image Resolution: 1080P (Web User Interface) / 1080P/720P/360P (RTSP).
Viewing Angle: Horizontal: 130° / Vertical: 65°.
Minimum Illumination: Approx. 1 lux.
Image Compression: H.264, JPEG.
Frame Rate: 1 to 10 FPS (selectable).
IR Cut Filter: Removable infrared-cut filter (Auto-adjustable / Night / Day).
More Than Cameras — A Fully Integrated Surveillance System
Installing security cameras is only the first step—Spade Security Services delivers fully integrated surveillance systems engineered for AI-powered detection, remote monitoring, and real-time response coordination, transforming standard CCTV hardware into a proactive, operational security solution that protects your property 24/7 through strategic placement, risk assessment, and live incident management.
Why Deploy Through Spade Security?
Spade Security is not just a reseller — we are a deployment and integration partner.
Security-first configuration
On-site deployment & testing
VMS & SOC integration
Secure network architecture guidance
Operator training & SOP development
Ongoing service & compliance updates
Operational Use Cases
Perimeter & Campus Patrol
Autonomous or scheduled aerial patrols provide continuous visibility across large campuses, industrial sites, and secured perimeters — reducing reliance on manual guard rounds while increasing real-time awareness.
Alarm Verification & Rapid Response
Deploy drones immediately after a triggered alarm to visually verify incidents in minutes. Reduce false dispatches, improve response accuracy, and provide live situational intelligence to security teams.
Critical Infrastructure Inspection
Safely inspect substations, pipelines, towers, bridges, and restricted facilities without shutting down operations. Capture high-resolution visual and thermal data for proactive maintenance and risk mitigation.
Construction Site Monitoring
Monitor project progress, secure equipment yards, and document site conditions from above. Improve oversight, reduce theft, and maintain clear visual records for reporting and compliance.
Utility & Energy Asset Inspection
Perform routine and emergency inspections of power lines, solar fields, wind turbines, and grid infrastructure with minimal downtime — improving safety while lowering operational risk.
Event & Temporary Site Security
Provide rapid-deployment aerial coverage for large events, festivals, or temporary work sites. Enhance crowd monitoring, perimeter control, and emergency coordination with live aerial visibility.
Still have questions?
We install IP-based CCTV systems, AI-enabled cameras, PTZ (pan-tilt-zoom), thermal cameras, license plate recognition (LPR), and multi-site surveillance systems for commercial and industrial properties.
Yes. Our systems allow secure remote access via desktop and mobile devices, giving you real-time visibility anytime, anywhere.
AI-powered cameras can distinguish between people, vehicles, and objects, reducing false alarms while providing intelligent alerts for real threats.
Absolutely. We can integrate with access control systems, alarm systems, mobile patrol operations, and centralized monitoring platforms.
Storage duration depends on your system configuration. We offer scalable local and cloud-based storage options based on your operational and compliance needs.
Yes. Spade Security can provide live monitoring and real-time response coordination to ensure immediate action when incidents occur.
Yes. We design customized surveillance layouts for warehouses, construction sites, commercial buildings, residential communities, and critical infrastructure.
Yes. We offer ongoing maintenance, system health checks, software updates, and technical support to keep your surveillance system operating at peak performance.
